Longitudinal Seam Welding Manipulator / Straight Seam Welding Machine

Place of Origin CHINA
ब्रांड नाम FRIENDSHIP MACHINERY
प्रमाणन CE, ISO
Model Number ZH-3000
Minimum Order Quantity 1
मूल्य USD10,000
Packaging Details Wood pallet
Delivery Time 30 working days
उत्पाद विवरण
Welding lengt 3000mm Tank diameter 2270-750mm
Weldingt thickness 1-4mm Welding gun adjustment 100mm (up/ down/ front/ back)
हाई लाइट

column and boom welding manipulators

,

weld manipulator

एक संदेश छोड़ें
उत्पाद विवरण





Longitudinal Seam Welding Machine to Weld Tank Cylinder Straight Seam

1. Introduction



    Longitudinal Seam Welding Machine is mainly used for welding longitudinal seam of thin sheet. It adopts cantilever type, and it is mainly composed of frame, fingers-type clamping unit, water cooling mandrel, traveling carriage, crossing slider, wire feeder and torch holder.



    Artificial workpiece pushed in juxtaposition to the core shaft artificial weld position, pneumatic keys clamp work piece side pressing, electric torch shift to the weld joint, electric drop of welding gun, fine tune the torch alignment, welding press welding "button, the welding power supply automatic arc, arc stability, welding torch automatic walking, began to normal welding process, to set the welding length automatically stop welding, automatic welding gun rising, torch automatic reset high-speed, gas moving platen release, hydraulic pressure to open the mandrel hanger, unloading the workpiece, automatic welding.





2. Main Parameter



Model ZH-500 ZH-1000 ZH-1500 ZH-2000 ZH-2500 ZH-3000 ZH-3500
Welding Length <=500 <=1000 <=1500 <=2000 <=2500 <=3000 <=3500
Min.Cyliner Diameter (mm) >=110 >=150 >=180 >=230 >=280 >=340 >=400
Welding Thickness (mm/min) 0.2-6 0.4-6 1-6
Welding Speed (mm) 150-1500
Speed Control VFD
Workingpiece Fixing Method Pneumatic
Stepped Precision (mm) ±0.1 ±0.15 ±0.2

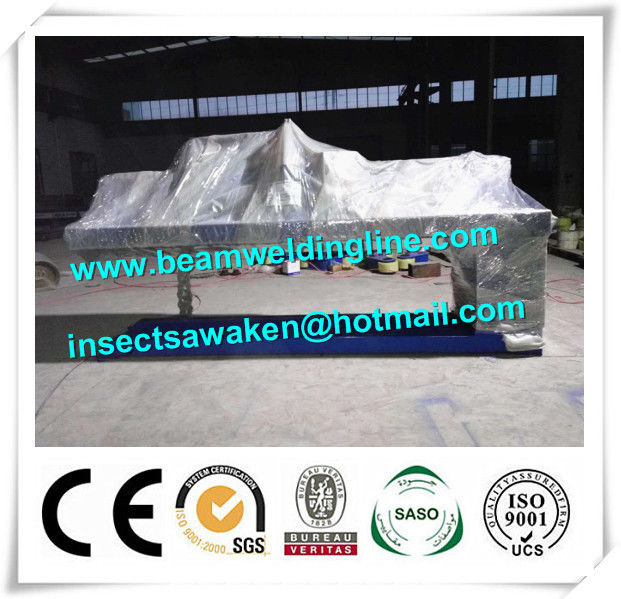

Longitudinal Seam Welding Manipulator / Straight Seam Welding Machine 0



Longitudinal Seam Welding Manipulator / Straight Seam Welding Machine 1
