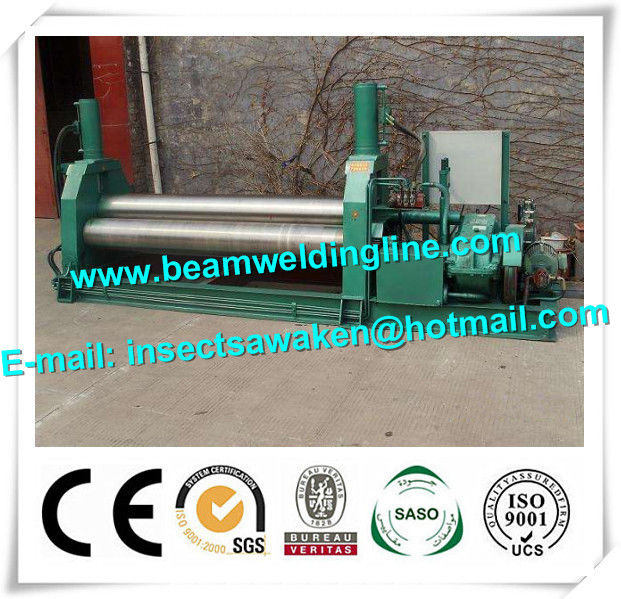

3 Roller Hydraulic Symmetrical Plate Rolling Machine For Shipbuilding / Petroleum
Model | W11Y 6*6000 | Control type | NC |
---|---|---|---|
Driven method | Hydraulic | ||
हाई लाइट | hydraulic press brake machine,cnc hydraulic shearing machine |
1. Main Summarize
W11Y-6×6000 3 roller hydraulic symmetrical plate rolling machine, suit to bend mild steel thickness not more than 6mm when it’s width is 6000mm under the normal temperature condition; if use it to bend mild steel width less than 6000mm, it can to bend thicker mild steel, but the accurate bend thickness should to calculate; and if use it to bend other kinds steel sheet with different yielding limit, the max thickness should to do calculation.
W11Y-series device widely used in manufacturing industries for example boiler, shipbuilding, petroleum, chemical, cement and motor and so on.
W11Y-series device with compacted structure, easy to operate, and widely selected by users in actual production.
2. Technical parameters
Model | Unit | W11Y-6×6000 |
Yielding limit of bended sheet | Mpa | σs≤245 |
Maximum bended thickness | mm | 6 |
Maximum bended width | mm | 6000 |
Diameter of up roller | mm | Φ330 |
Diameter of bottom rollers | mm | Φ200 |
Distance between two bottom rollers | mm | 320 |
Minimum diameter when full load | mm | Φ650 |
Rolling speed | m/min | About 4 |
Lifting speed of up roller | mm/min | About 120 |
Support roller | / | 3 sets * 4 |
Main motor power | KW | 11 |
Hydraulic motor power | KW |
5.5 |
Total weight | kg | 17000 |
Overall dimension | mm | 8500×1500×2000 |
